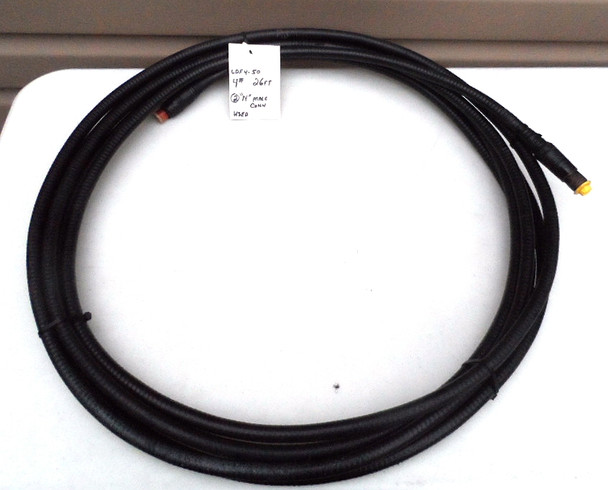

Andrew LDF4-50, 26 Feet of 1/2 inch Heliax Hard Line Used in Excellent Condition with 2 Male N Connector *PICKUP ONLY*

Write a Review
MPN:
LDF5-50A
Condition:
Used
Shipping:
$0.01 (Fixed Shipping Cost)
  • Andrew LDF4-50, 26 Feet of 1/2 inch Heliax Hard Line Used in Excellent Condition with 2 Male N Connector *PICKUP ONLY*
  • Andrew LDF4-50, 26 Feet of 1/2 inch Heliax Hard Line Used in Excellent Condition with 2 Male N Connector *PICKUP ONLY*
  • Andrew LDF4-50, 26 Feet of 1/2 inch Heliax Hard Line Used in Excellent Condition with 2 Male N Connector *PICKUP ONLY*
  • Andrew LDF4-50, 26 Feet of 1/2 inch Heliax Hard Line Used in Excellent Condition with 2 Male N Connector *PICKUP ONLY*
$50.00
Frequently bought together:

Description

Andrew LDF4-50, 26 Feet of 1/2 inch Heliax Hard Line Used in Excellent Condition with 2 Male N Connector *PICKUP ONLY*

 This length of 1/2 inch line is getting very hard to find!

NOTE: This is a PICKUP ITEM ONLY. I live near Green Bay Wisconsin just minutes from Highway 41 North.

This roll of hardline was made available to me and has been stored indoors.

 It is in excellent condition and half price of new.

The LDF4-50A is a 1/2-inch (nominal) low-density foam dielectric, 50-ohm coaxial cable with a corrugated copper outer conductor, copper-clad aluminum inner conductor, and black polyethylene (PE) jacket. It is designed for outdoor use (halogen-free, non-fire-retardant jacket).General Specifications
  • Cable Type: HELIAX® Low Density Foam Coaxial Cable
  • Diameter: 1/2 inch (approximately 15.9 mm outer jacket diameter)
  • Impedance: 50 ohms ±1 ohm
  • Jacket Color/Material: Black PE (polyethylene)
  • Inner Conductor: Copper-clad aluminum
  • Outer Conductor: Annular corrugated copper
  • Dielectric: Low-density foam polyethylene (PE)
  • Operating Frequency Band: Up to 8.8 GHz (wideband performance)
  • Velocity of Propagation (VOP): 88%
  • Peak Power Rating: 40 kW
Electrical Specifications
  • Capacitance: 23.1 pF/ft (75.8 pF/m)
  • Inductance: 0.058 µH/ft (0.190 µH/m)
  • DC Resistance:
    • Inner Conductor: 0.451 ohms/kft (1.48 ohms/km)
    • Outer Conductor: ~0.58–0.82 ohms/kft (1.90–2.69 ohms/km, varying slightly by source)
  • DC Test Voltage: 4000 V
  • Jacket Spark Test Voltage (RMS): 8000 V
  • Insulation Resistance: >100,000 MΩ·km
Mechanical Specifications
  • Weight: Approximately 0.148–0.15 lb/ft (0.22 kg/m)
  • Minimum Bend Radius:
    • Single Bend: 2 inches (50.8 mm)
    • Repeated/Multiple Bends: 5 inches (127 mm)
  • Bending Moment: 2.8 ft·lb (3.8 N·m)
  • Flat Plate Crush Strength: 110 lb/in (2.0 kg/mm)
  • Tensile Strength: Typically high for installation (specific value not always listed, but suitable for tower/antenna runs)
  • Operating Temperature Range: -55°C to +85°C (-67°F to +185°F)
  • Storage Temperature Range: -70°C to +85°C (-94°F to +185°F)
This cable is widely used for low-loss RF transmission in wireless, broadcasting, and amateur radio applications, offering excellent performance for long runs with minimal attenuation. Specifications are based on current CommScope/Andrew datasheets; always verify with the latest manufacturer document for your specific needs.
