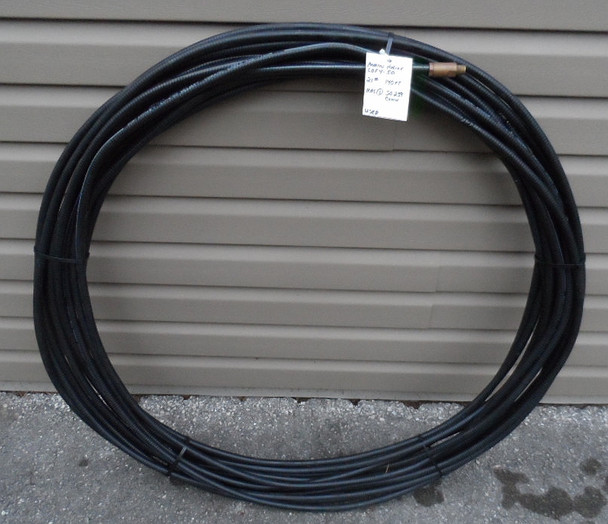

Andrew LDF5-50, 140 Feet of 7/8 Heliax Hard Line Used in Excellent Condition with 1 SO-239 Connector Installed *PICKUP ONLY*

Andrew LDF5-50, 140 Feet of 7/8 Heliax Hard Used in Excellent Condition with 1 SO-239 Connector Installed *PICKUP ONLY*

 This length of 7/8 line is getting very hard to find!

NOTE: This is a PICKUP ITEM ONLY. I live near Green Bay Wisconsin just minutes from Highway 41 North.

This roll of hardline was made available to me and has been stored indoors.

 It is in excellent condition and half price of new.

Coaxial Cable
P R O D U C T S P E C I F I C A T I O N
LDF5-50A
Standard coaxial cable, 7/8", 50 ohm foam HELIAX (Wideband from 0.5-5000 MHz)
CHARACTERISTICS

www.andrew.com
This Specification Sheet is for reference only and is subject to change without notice.
Copyright © 2002 by Andrew Corporation, Printed in U.S.A. 12/3/2002
Jacket Material: Polyethelyne
Outer Conductor Material: Corrugated Copper
Inner Conductor Material: Copper Tube
Dimensions
Diameter Over Jacket (inches): 1.08
Diameter Over Jacket (millimeters): 27.40
Outer Conductor Outside Diameter (inches): 0.98
Outer Conductor Outside Diameter (millimeters): 24.90
Outer Conductor Inside Diameter (inches): 0.96
Outer Conductor Inside Diameter (millimeters): 24.40
Inner Conductor Outside Diameter (inches): 0.36
Inner Conductor Outside Diameter (millimeters): 9.10
Inner Conductor Inside Diameter (inches): 0.30
Inner Conductor Inside Diameter (millimeters): 7.60
General Specifications
Cable Grade: Standard
NEC Classification Type: N/A
Nominal Size (inches): 7/8
Short Description: 7/8" 50 ohm HELIAX foam coaxial cable
Available Connectors
Part Number Connector Type Special Characteristics Inner Contact Grade
124800-1 7/8 EIA Flange Right Angle N/A Standard
48041 F Flange Female N/A Self-Tapping Standard
L45F F Flange Male N/A Self-Tapping Standard
L45R 7/8 EIA Flange N/A Self-Tapping Standard
L5PDF-BH 7-16 DIN Female Bulkhead Self-Tapping Plated
L5PDF-PM 7-16 DIN Female Panel Mount Self-Tapping Plated
L5PDF-RC 7-16 DIN Female Ring Flare Captivated Plated
L5PDF-RPC 7-16 DIN Female One Piece Captivated Plated
L5PDM-RC 7-16 DIN Male Ring Flare Captivated Plated
L5PDM-RPC 7-16 DIN Male One Piece Captivated Plated
L5PDR 7-16 DIN Male Right Angle Self-Tapping Plated
L5PNF-RC N Female Ring Flare Captivated Plated
L5PNF-RPC N Female One Piece Captivated Plated
L5PNM-RC N Male Ring Flare Captivated Plated
