Ten-Tec Model 1315 QRP CW Transceiver Kit for 15 Meters Unbuilt Kit

Write a Review
MPN:
1315
Condition:
New
Shipping:
$20.00 (Fixed Shipping Cost)
  • Ten-Tec Model 1315 QRP CW Transceiver Kit for 15 Meters Unbuilt Kit
  • Ten-Tec Model 1315 QRP CW Transceiver Kit for 15 Meters Unbuilt Kit
  • Ten-Tec Model 1315 QRP CW Transceiver Kit for 15 Meters Unbuilt Kit
  • Ten-Tec Model 1315 QRP CW Transceiver Kit for 15 Meters Unbuilt Kit
  • Ten-Tec Model 1315 QRP CW Transceiver Kit for 15 Meters Unbuilt Kit
  • Ten-Tec Model 1315 QRP CW Transceiver Kit for 15 Meters Unbuilt Kit
  • Ten-Tec Model 1315 QRP CW Transceiver Kit for 15 Meters Unbuilt Kit
  • Ten-Tec Model 1315 QRP CW Transceiver Kit for 15 Meters Unbuilt Kit
$124.99
Frequently bought together:

Description

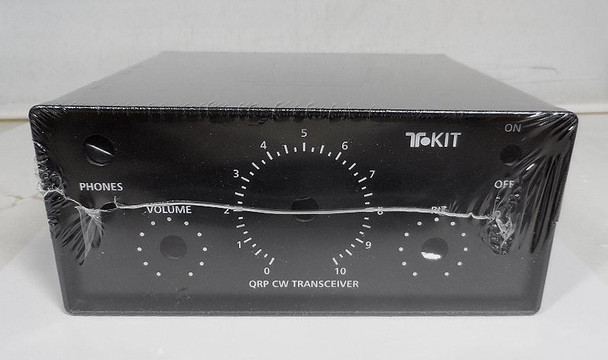

Ten-Tec Model 1315 QRP CW Transceiver Kit for 15 Meters Unbuilt Kit.

The Kit is complete and still sealed in the original shrink wrap with all parts inside the cabinet.

It comes with the construction book.

Specifications



General

  • FREQUENCY COVERAGE: any 50 kHz section of CW sub-band. Selection made during winding of one toroid in VFO circuit.
  • FREQUENCY CONTROL: varactor tuned oscillator with potentiometer control. Temperature compensated LC components stabilize VFO.
  • RIT (receive incremental tuning): +/- 1.50 kHz
  • ANTENNA: 50 ohm unbalanced, SO-239 connector
  • POWER REQUIREMENT: 12 - 14 VDC, 35 ma on receive with no signal 80 ma on receive for S-9 signal 800 ma on transmit
  • CONSTRUCTION: black texture painted. Clamshell style steel top and bottom, aluminum chassis. One double-sided printed circuit board measures 3.5" x 5".
  • BOARD MOUNTED COMPONENTS: 216 including 4 ICs, 19 transistors and 13 diodes.
  • FRONT PANEL CONTROLS: main tuning, volume, RIT; toggle for power ON/OFF
  • CONNECTORS: 1/4" stereo phone jack on front for headphones, 3 phono jacks on rear for key, DC input, DC output; SO-239 for antenna
  • DIMENSIONS: HWD 2.75" x 6" x 6" - 7 x 15.2 x 15.2 cm
  • WEIGHT: 2.25 lbs - 1.02 kg.

Transmitter

  • RF OUTPUT: 3 watts typical, no external adjustment
  • T/R SWITCHING: solid state, full break-in
  • CW OFFSET and SIDETONE: adjustable 400 - 1000 Hz, sidetone automatically tracks offset frequency. Sinewave sidetone has internal level adjustment.

Receiver

  • TYPE: single conversion superhet, JFET mixer
  • SENSITIVITY: 0.25 uv typical for 10 dB S/N
  • SELECTIVITY: 4 pole crystal ladder filter, 1 KHz nominal bandwidth
  • AGC: audio derived
  • AUDIO: 0.3 watt @ 4 ohms, built-in 3" speaker.



Ten-Tec T-Kits are high-quality amateur radio kits produced by Ten-Tec, an iconic American company founded in 1968 (originally as Tennessee Technology) in Sevierville, Tennessee. Known for manufacturing reliable HF transceivers, receivers, and accessories, Ten-Tec became legendary in the ham radio community for its innovative designs and excellent performance.The T-Kit line (introduced in the 1990s and continued into the 2000s) offered affordable, beginner-friendly projects for hams and experimenters. These kits focused on QRP (low-power) equipment, including single-band CW transceivers (like the popular 1300 series for 20m, 30m, 40m, etc., with models such as 1315, 1320, 1330, 1340), regenerative shortwave receivers (e.g., 1253, 1254), direct-conversion receivers, antenna tuners, transverters, wattmeters, and modular boards for custom builds.They were praised for being easy to assemble, well-engineered with high-quality components, and delivering solid performance once built—often outperforming commercial gear in their price range. Many hams built their first radios with T-Kits, and they remain sought-after by collectors and builders today.Your unbuilt T-Kits are rare collectibles, offering a fun project or a piece of ham radio history!
