Ten-Tec Model 311 Band Data Converter for Orion & Orion II for Use with the Model 420 Hercules II linear amplifier and/or Model 253 high power automatic antenna tuner NEW in Box

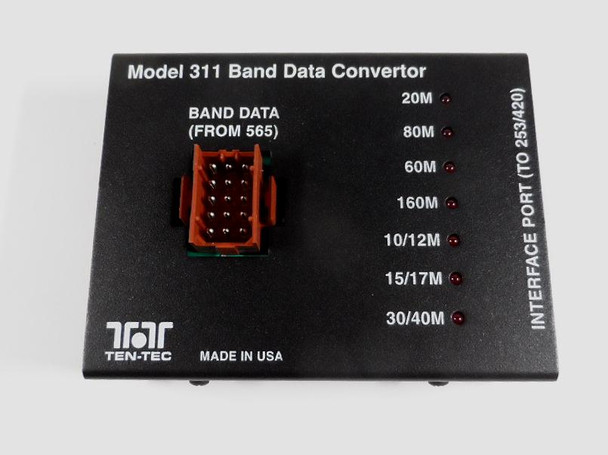

Band data converter for the Orion Model 565 and Orion II Model 566 HF transceivers for use with Model 420 Hercules II linear amplifier and/or Model 253 high power automatic antenna tuner.

The Model 311 converts the open collector outputs of the Orion to the active high inputs required by the Model 253 and Model 420. The output voltage per line is approx. 13.5VDC and each line is capable of driving loads requiring 40mA (each line is current limited to 40mA). Each output uses an MMBT3906 transistor with a breakdown voltage of 40VDC. So it is important that no more than 40VDC is ever applied to any of these lines. Most applications would never require that DC be applied to any of the pins anyway.
