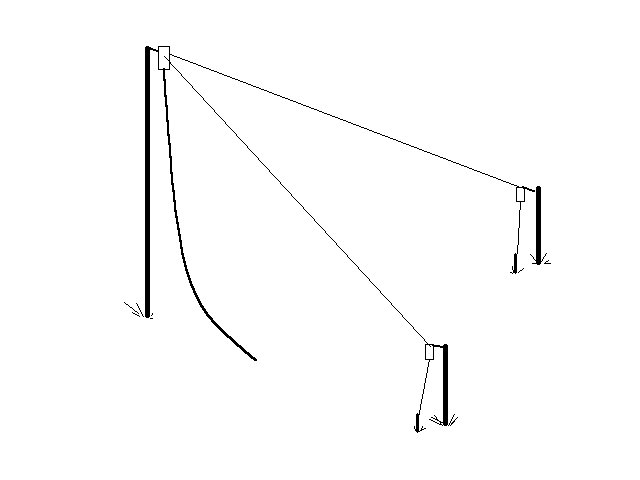

Model 3402 is a broadband terminated vee beam wire antenna. Small size offers continuous coverage from 1.8 to 54 MHz with VSWR of below 2:1 up to 30 MHz and below 2.5:1 from 30 to 54 MHz (typical VSWR on HF frequencies is 1.4:1).

• Archived Ten-Tec Web Page

• Input Power Rating: 250 watts ICAS, 100 watts continuous duty.
• Feedpoint Impedance: 50 ohms nominal.
• Feedpoint VSWR: Less than 2:1 typical 1.8-30 MHz, 2.5:1 30-54 MHz.
• Feedpoint Connector: SO-239
• Transformer Impedances: 50 ohms feed point, 800 ohms antenna.
• Termination Impedance: 400 ohms typical.
• Element Length: 100 ft.
• Wire Type: 14 AWG 7/22 stranded copper-clad steel.
