Air Variable Dual Section 7 to 105 pF 1000 Volt (each) Air Variable Capacitor

Write a Review
MPN:
7-105 PF
Condition:
Used
Shipping:
$7.00 (Fixed Shipping Cost)

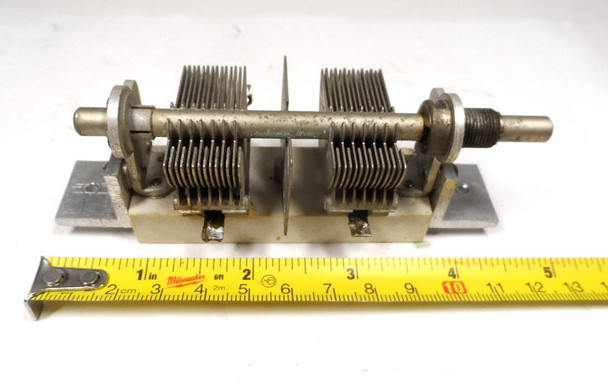

  • Dual-section air variable capacitor, 7–105 pF per section, approximately 1000 V peak rating. Compact multi-plate design with ~1/64-inch plate spacing and 1/4-inch shaft. Measures about 4-3/4 × 1-5/8 × 2-1/4 inches. Ideal for amateur radio receivers, restoration projects, or RF tuning applications needing matched ganged sections for simultaneous tuning.
  • Dual-section air variable capacitor, 7–105 pF per section, approximately 1000 V peak rating. Compact multi-plate design with ~1/64-inch plate spacing and 1/4-inch shaft. Measures about 4-3/4 × 1-5/8 × 2-1/4 inches. Ideal for amateur radio receivers, restoration projects, or RF tuning applications needing matched ganged sections for simultaneous tuning.
  • Dual-section air variable capacitor, 7–105 pF per section, approximately 1000 V peak rating. Compact multi-plate design with ~1/64-inch plate spacing and 1/4-inch shaft. Measures about 4-3/4 × 1-5/8 × 2-1/4 inches. Ideal for amateur radio receivers, restoration projects, or RF tuning applications needing matched ganged sections for simultaneous tuning.
  • Dual-section air variable capacitor, 7–105 pF per section, approximately 1000 V peak rating. Compact multi-plate design with ~1/64-inch plate spacing and 1/4-inch shaft. Measures about 4-3/4 × 1-5/8 × 2-1/4 inches. Ideal for amateur radio receivers, restoration projects, or RF tuning applications needing matched ganged sections for simultaneous tuning.
  • Dual-section air variable capacitor, 7–105 pF per section, approximately 1000 V peak rating. Compact multi-plate design with ~1/64-inch plate spacing and 1/4-inch shaft. Measures about 4-3/4 × 1-5/8 × 2-1/4 inches. Ideal for amateur radio receivers, restoration projects, or RF tuning applications needing matched ganged sections for simultaneous tuning.
$19.99
Frequently bought together:

Description

Air Variable Dual Section 7 to 105 pF 1000 Volt (each) Air Variable Capacitor

Key Specifications:
  • Brand: Unmarked / unknown
  • Model: Unknown
  • Sections: 2 (dual-section / 2-gang)
  • Capacitance: 7 pF minimum to 105 pF maximum per section
  • Plate spacing: Approximately 1/64 in (0.0156 in)
  • Estimated voltage rating: ~1000 V peak (standard ARRL Handbook guideline for ~0.015 in air-gap spacing; practical RF rating for receiving/low-power use)
  • Shaft: 1/4 in diameter
  • Dimensions (approx.): Length 4-3/4 in, Width 1-5/8 in, Height 2-1/4 in
  • Construction: Compact dual-section air-dielectric design with multi-plate rotors and stators on a common shaft. Typical of mid-century receiver-style ganged tuning capacitors used for simultaneous RF and oscillator tuning.
Exact original brand, model, and factory voltage data were not identified; the voltage rating is derived from measured plate spacing.
