EF Johnson 500 pF Single Section Air Variable Capacitor 36 - 500 pF

Write a Review
Condition:
Used
Shipping:
$16.00 (Fixed Shipping Cost)

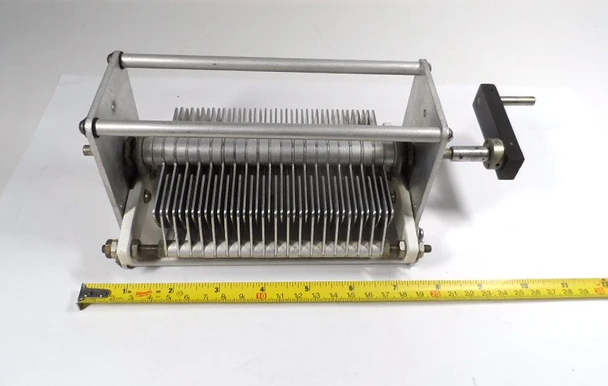

  • EF Johnson 500 pF Single Section Air Variable Capacitor – 36-500 pF. Genuine E.F. Johnson Co. Type C-style single air variable with ¼″ shaft and original crank handle. Ideal for ham radio transmitters, amplifiers, and antenna tuners. Rugged aluminum construction with steatite insulation, approx. 11″ L × 4½″ W × 4¼″ H, ~1/6″ plate spacing. Clean used condition. Perfect for vintage restoration or high-power RF projects. Nationwide Radio & Eq. Sales.
  • EF Johnson 500 pF Single Section Air Variable Capacitor – 36-500 pF. Genuine E.F. Johnson Co. Type C-style single air variable with ¼″ shaft and original crank handle. Ideal for ham radio transmitters, amplifiers, and antenna tuners. Rugged aluminum construction with steatite insulation, approx. 11″ L × 4½″ W × 4¼″ H, ~1/6″ plate spacing. Clean used condition. Perfect for vintage restoration or high-power RF projects. Nationwide Radio & Eq. Sales.
  • EF Johnson 500 pF Single Section Air Variable Capacitor – 36-500 pF. Genuine E.F. Johnson Co. Type C-style single air variable with ¼″ shaft and original crank handle. Ideal for ham radio transmitters, amplifiers, and antenna tuners. Rugged aluminum construction with steatite insulation, approx. 11″ L × 4½″ W × 4¼″ H, ~1/6″ plate spacing. Clean used condition. Perfect for vintage restoration or high-power RF projects. Nationwide Radio & Eq. Sales.
  • EF Johnson 500 pF Single Section Air Variable Capacitor – 36-500 pF. Genuine E.F. Johnson Co. Type C-style single air variable with ¼″ shaft and original crank handle. Ideal for ham radio transmitters, amplifiers, and antenna tuners. Rugged aluminum construction with steatite insulation, approx. 11″ L × 4½″ W × 4¼″ H, ~1/6″ plate spacing. Clean used condition. Perfect for vintage restoration or high-power RF projects. Nationwide Radio & Eq. Sales.
$37.99
Frequently bought together:

Description

EF Johnson 500 pF Single Section Air Variable Capacitor 36 - 500 pF

Genuine E.F. Johnson Co. (Waseca, MN) single-section air-variable capacitor. The nameplate is blank for Type/Cat. No. and Serial, but clearly stamped CAP μμF 500. Your measurements and the classic construction match the Type “C” / high-capacity single-section family (close to catalog examples such as 152-2 / 500C70 or related 500 pF Type C/D units).


Your measured / stated specs:
  • Sections: 1
  • Capacitance: 36–500 pF
  • Dimensions: Length 11″, Width 4½″, Height 4¼″
  • Plate spacing / air gap: ~1/6″ (≈0.167″; closely matches the common 0.175″ Type C spacing used on many 500 pF units)
  • Shaft: ¼″ diameter with attached crank handle
Typical catalog correlation & construction:
Heavy aluminum end frames, aluminum plates, steatite (ceramic) insulators, ¼″ cadmium-plated shaft. These were built for medium- to higher-power RF service in amateur transmitters, amplifiers, antenna tuners, and loading networks. The crank handle makes it convenient for panel or chassis mounting where frequent adjustment is needed.
  The handle is pinned on the shaft but you can cut the shaft to length or knock out the pins and remove the handle if desired

Voltage rating:
For the ~0.175″ (or 1/6″) spacing family, peak voltage is typically 3,500–7,000 V depending on exact gap, plate rounding, and condition. Comparable Johnson singles in this capacitance/spacing range are commonly rated 3,500 V (0.080–0.175″ examples) up to ~7 kV. Always verify with a high-pot test if critical.

 Clean used with original crank handle. Free-turning shaft, good plate alignment, and intact steatite supports visible in photos.
