Hammarlund single section air variable capacitor, 37-110 pF range, rated 6750 V AC peak Part # 7606108-7

Write a Review
MPN:
7606108-7
Condition:
Used
Shipping:
$14.00 (Fixed Shipping Cost)

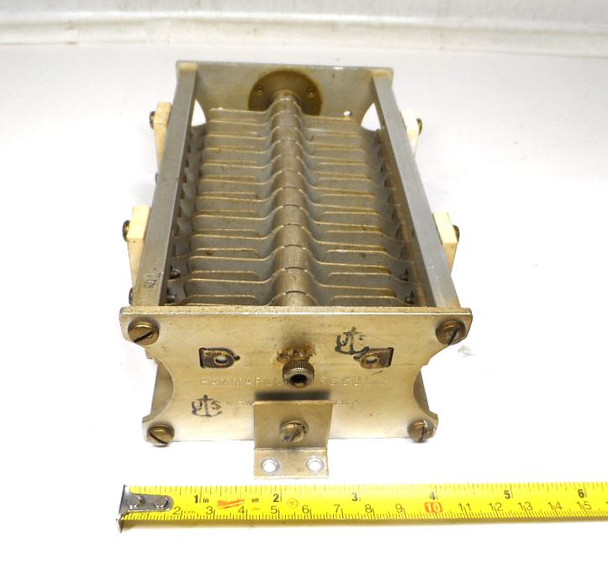

  • Hammarlund 7606108-7 single section air variable capacitor, 37-110 pF range, rated 6750 V AC peak. Heavy-duty approximately 8 inch long transmitting style unit with 1/4 inch shaft. Ideal for high-power RF amplifiers, antenna tuners, and amateur radio projects. Features ceramic insulation and robust brass frame construction matching NSN 5910-00-187-5719 characteristics. Quality vintage Hammarlund manufacturing for reliable high-voltage performance. Available from Nationwide Radio & Eq. Sales. ke9pq.com
  • Hammarlund 7606108-7 single section air variable capacitor, 37-110 pF range, rated 6750 V AC peak. Heavy-duty approximately 8 inch long transmitting style unit with 1/4 inch shaft. Ideal for high-power RF amplifiers, antenna tuners, and amateur radio projects. Features ceramic insulation and robust brass frame construction matching NSN 5910-00-187-5719 characteristics. Quality vintage Hammarlund manufacturing for reliable high-voltage performance. Available from Nationwide Radio & Eq. Sales. ke9pq.com
  • Hammarlund 7606108-7 single section air variable capacitor, 37-110 pF range, rated 6750 V AC peak. Heavy-duty approximately 8 inch long transmitting style unit with 1/4 inch shaft. Ideal for high-power RF amplifiers, antenna tuners, and amateur radio projects. Features ceramic insulation and robust brass frame construction matching NSN 5910-00-187-5719 characteristics. Quality vintage Hammarlund manufacturing for reliable high-voltage performance. Available from Nationwide Radio & Eq. Sales. ke9pq.com
  • Hammarlund 7606108-7 single section air variable capacitor, 37-110 pF range, rated 6750 V AC peak. Heavy-duty approximately 8 inch long transmitting style unit with 1/4 inch shaft. Ideal for high-power RF amplifiers, antenna tuners, and amateur radio projects. Features ceramic insulation and robust brass frame construction matching NSN 5910-00-187-5719 characteristics. Quality vintage Hammarlund manufacturing for reliable high-voltage performance. Available from Nationwide Radio & Eq. Sales. ke9pq.com
$37.99
Frequently bought together:

Description

Hammarlund single section air variable capacitor, 37-110 pF range, rated 6750 V AC peak Part # 7606108-7

Hammarlund 7606108-7 37-110 pF 6750V Single Section Air Variable CapacitorSpecifications (matching NSN 5910-00-187-5719 / T7606108-7 data):
  • Manufacturer: Hammarlund Mfg. Co. Inc. (New York, U.S.A.; also associated with Westinghouse listings for this part family)
  • Model: 7606108-7 (also appears as T7606108-7 / T7606108-7REV11 variants)
  • Sections: 1 (single)
  • Capacitance range: Official 32–110 pF; your measured 37–110 pF is consistent with typical variation
  • Voltage rating: 6750 V AC peak (nonderated)
  • Shaft: 1/4 inch diameter, round
  • Overall length: Approximately 8.5 inches nominal (matches your 8 inches)
  • Other dimensions: Width ~4 3/4 inches, height ~2 1/2 inches
  • Tuning characteristic: Straight-line capacity
  • Adjustment: 180° clockwise and counterclockwise
  • Mounting: Threaded holes
  • Construction: Unenclosed air-dielectric with ceramic (steatite-type) insulators, brass/metal frame
  • Terminals: Tab/solder lug style
This is a heavy-duty, high-voltage transmitting-style unit from the same family as related dual-section parts (e.g., T-7606108-8). The high voltage rating indicates relatively wide plate spacing suitable for RF amplifier or tuner applications.
