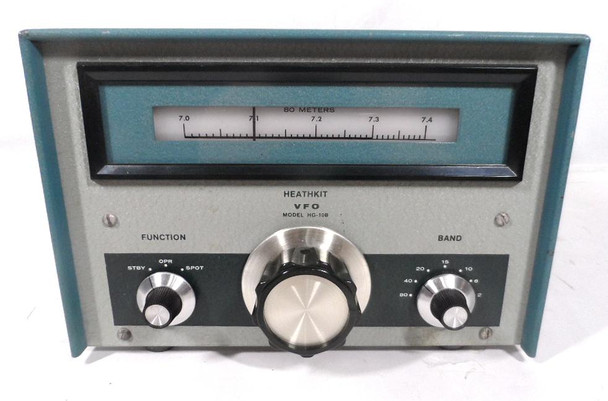

Heathkit HG-10B Variable Frequency Oscillator (VFO) in excellent condition, working

Write a Review
MPN:
HG-10B
Condition:
Used
Shipping:
$25.00 (Fixed Shipping Cost)
  • Vintage Heathkit HG-10B VFO in excellent cosmetic and fully working condition. Covers 80-40-20-15-10-6-2 meters with stable output. Perfect companion for DX-60 series transmitters. Classic tube VFO, ready to use. Nationwide shipping available.
  • Vintage Heathkit HG-10B VFO in excellent cosmetic and fully working condition. Covers 80-40-20-15-10-6-2 meters with stable output. Perfect companion for DX-60 series transmitters. Classic tube VFO, ready to use. Nationwide shipping available.
  • Vintage Heathkit HG-10B VFO in excellent cosmetic and fully working condition. Covers 80-40-20-15-10-6-2 meters with stable output. Perfect companion for DX-60 series transmitters. Classic tube VFO, ready to use. Nationwide shipping available.
  • Vintage Heathkit HG-10B VFO in excellent cosmetic and fully working condition. Covers 80-40-20-15-10-6-2 meters with stable output. Perfect companion for DX-60 series transmitters. Classic tube VFO, ready to use. Nationwide shipping available.
  • Vintage Heathkit HG-10B VFO in excellent cosmetic and fully working condition. Covers 80-40-20-15-10-6-2 meters with stable output. Perfect companion for DX-60 series transmitters. Classic tube VFO, ready to use. Nationwide shipping available.
  • Vintage Heathkit HG-10B VFO in excellent cosmetic and fully working condition. Covers 80-40-20-15-10-6-2 meters with stable output. Perfect companion for DX-60 series transmitters. Classic tube VFO, ready to use. Nationwide shipping available.
  • Vintage Heathkit HG-10B VFO in excellent cosmetic and fully working condition. Covers 80-40-20-15-10-6-2 meters with stable output. Perfect companion for DX-60 series transmitters. Classic tube VFO, ready to use. Nationwide shipping available.
$99.99
Frequently bought together:

Description

Heathkit HG-10B Variable Frequency Oscillator (VFO) in excellent condition, working

 I tested this VFO with a Heathkit DX-60A, and it worked great with no obvious problems.

 This unit can be used with other Heathkit gear and non Heathkit gear.

  You can find the Free Manual at the link below:


Heathkit HG-10B VFO Information & SpecsThe Heathkit HG-10B is a classic amateur radio Variable Frequency Oscillator (VFO) from the late 1960s, designed as a companion to the DX-60 series transmitters (and others like the HW-16). It provides stable, crystal-replacement frequency control for CW and AM operation across multiple bands. The "B" version features updated styling (textured paint) to better match the DX-60B.

w6ze.org
Key Specifications
  • Bands Covered: 80, 40, 20, 15, 10, 6, and 2 meters (separate calibrated scales on a rotating drum/slide-rule dial).
  • Frequency Ranges (VFO output, with multiplication in transmitter):
    • 80m: 3.5–4.0 MHz
    • 40–10m: 7.0–7.425 MHz (multiplied)
    • 6m: 8.333–9.0 MHz
    • 2m: 8.0–8.222 MHz
  • RF Output: >5 volts RMS (open circuit), suitable for driving compatible transmitters.
  • Tubes: 6CH8 (oscillator + cathode follower buffer), 0B2 voltage regulator.
  • Power Requirements: 6.3V AC at 0.75A (filaments) and ~108V DC regulated at ~25 mA (B+ from transmitter accessory socket or external supply).
  • Controls: Function switch (Standby/Operate/Spot), main tuning (28:1 vernier drive with anti-backlash gears), bandswitch.
  • Keying: Compatible with grid-block or cathode keying transmitters.
  • Size & Weight: Approx. 9-3/8" W x 6-1/2" H x 9-1/8" D, ~9.5 lbs.
  • Output: RCA phono jack; rear power cable with octal plug.
  •
  • Key Features & Specs:
    • Bands: 80, 40, 20, 15, 10, 6, and 2 meters (illuminated rotating drum dial)
    • RF Output: >5V RMS
    • Tubes: 6CH8 (oscillator/buffer), 0B2 regulator
    • Tuning: 28:1 vernier drive with anti-backlash gears
    • Controls: Standby/Operate/Spot switch, main tuning, bandswitch
    • Power: 6.3V AC @ 0.75A and ~108V DC @ 25mA (from transmitter or external supply)
    • Connections: RCA RF out, key jack, power cable with octal plug
    • Size: 9-3/8" W x 6-1/2" H x 9-1/8" D
