LDG Electronics

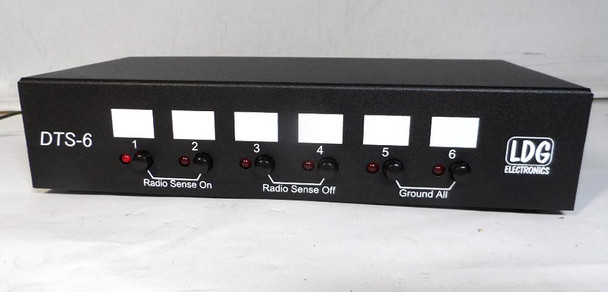

LDG Electronics DTS-6 Electronically Controlled 6 Position Desktop Coaxial Antenna Switch As New!
- MPN:
- DTS-6
- Condition:
- Used
- Shipping:
- $15.00 (Fixed Shipping Cost)
Frequently bought together:
Description
LDG Electronics DTS-6 Electronically Controlled 6 Position Desktop Coaxial Antenna Switch As New! Power Supply Included.
The LDG DTS-6 Desktop Coaxial Switch is a reliable 6-position electronic antenna selector for serious ham radio operators. Instantly switch your rig between up to six coax-fed antennas with front-panel buttons. This LDG DTS6 handles 1500 watts PEP on HF (250W on 6M) using rugged sealed relays for low loss and high isolation. Smart safety features include automatic grounding of all unused ports when your radio is powered off via the Radio Sense input—protecting your antennas and station.
Supports optional external control via TTL serial for computer integration, and pairs with the DTS-6R remote head for flexible placement.
This unit is in excellent Like New condition—fully tested, clean SO-239 connectors, all positions working smoothly, with minimal wear. Ideal for shacks with multiple antennas (dipoles, verticals, beams, etc.).Why hams loved the LDG DTS-6: convenient one-button switching, built-in protection, and durable performance. Add this hard-to-find LDG 6-port coaxial switch in excellent condition to your station today.
Key Features & Specs:
- 6 antenna positions (SO-239 connectors on the rear: 6 inputs + 1 common/output to the radio).
- Power handling: 1500 watts PEP on HF (typically up to 30 MHz); derated to 250 watts on 6 meters.
- Automatic safety feature: When the radio is turned off (via "Radio Sense" input detecting RF or DC), all antenna ports are automatically grounded for protection against static/lightning-induced surges.
- Rugged sealed industrial relays for reliable switching with low insertion loss and high isolation.
- Radio Sense jack (2.5 x 5.5 mm coaxial) for automatic grounding.
- 1/8″ stereo jack for optional external TTL-level serial control (e.g., computer or software integration; compatible with RS-232 converters).
- 12 VDC power required (100 mA typical; power supply not included).
- Optional DTS-6R remote control head available for mounting the main unit remotely while keeping controls at the operating position.
- Compact desktop design, ideal for multi-antenna shacks (dipoles, verticals, beams, etc.).
