RL Drake DC-4 Mobile DC Power Supply in Excellent Condition

Write a Review

SKU:
UPC:
MPN:: DC-4
Condition:: Used
Shipping:: $25.00 (Fixed Shipping Cost)

$74.99

Current Stock:

Quantity:

Frequently bought together:

Description

Description

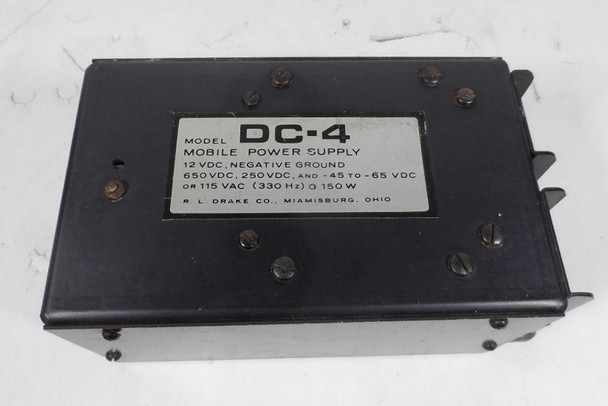

RL Drake DC-4 Mobile DC Power Supply in Excellent Condition

Includes a 10 conductor Sinch Jones connector for the power supply side.

Besides mobile operation. it is perfect for off the grid operation in remote areas where HF Communications is key for emergency communications.

The Drake DC-4 is a classic mobile DC-to-DC power converter designed for the Drake TR-4 / TR-4C / TR-4CW and similar 4-line series transceivers. It converts 12V DC vehicle power into the high voltages required by tube-type Drake rigs for mobile or portable operation. It was a popular accessory in the 1970s for mobile ham radio setups.

Key Specifications

Input: 12 Volts DC (negative ground)
Outputs:
- High Voltage: 650 V DC at 300 mA average (500 mA peak)
- Low Voltage: ~250–300 V DC range
- Bias and filament voltages as required by the transceiver
Power Handling: Suitable for full-power operation of TR-4 series (approx. 300W input)
Features: Self-contained solid-state converter, includes interface cable for direct connection to the transceiver
Size & Weight: Compact for mobile use (9 pounds)

Key Features & Specs:

Input: 12 Volts DC (negative ground)
High Voltage Output: 650 V DC @ 300 mA average (500 mA peak)
Designed specifically for Drake TR-4, TR-4C, TR-4CW and similar tube transceivers
Provides all required HV, LV, bias, and filament voltages
Ideal for mobile or portable operation
Includes a 10 conductor Sinch Jones connector for the power sully side
