Ten-Tec Model No. 1051 T-Kit Module Board Transmatch Tuning Bridge Unbuilt

Write a Review

SKU:
UPC:
MPN:: 1050
Condition:: New
Shipping:: $6.00 (Fixed Shipping Cost)

$19.99

Current Stock:

Quantity:

Frequently bought together:

Description

Description

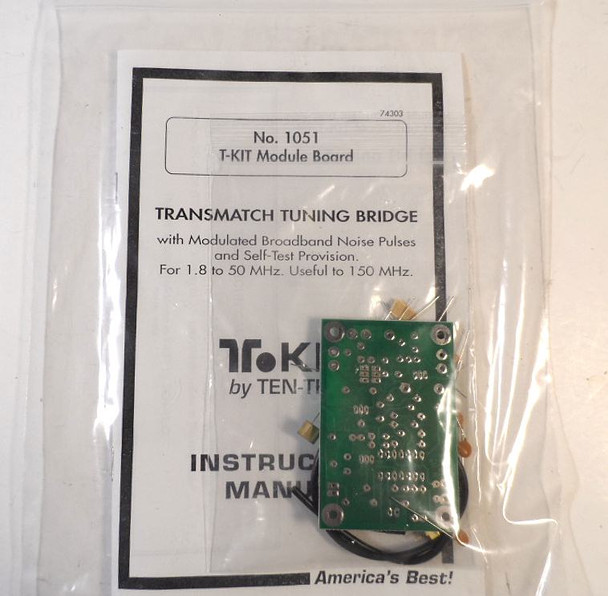

Ten-Tec Model No. 1051 T-Kit Module Board Transmatch Tuning Bridge Unbuilt

If several T-Kits are purchased, I will combine the shipping and refund the difference.

Accurately tune your antenna system without transmitting! The Ten-Tec Model 1051 T-Kit Transmatch Tuning Bridge is a handy RF noise bridge module that generates clear modulated pulses. Simply connect it between your rig and tuner, listen on your receiver, and adjust until the pulses null — indicating a perfect 50-ohm match. No on-air testing, no complex controls. Ideal for dipoles, beams, random wires, and any transmatch setup. Easy-to-build T-Kit board — perfect for homebrewers. A smart, low-cost alternative to expensive commercial units. Complete unbuilt kit with instructions. Great for portable, field day, or station use. Add this useful tool to your shack today. Contact us for photos, details, or bundle pricing with other Ten-Tec kits. Nationwide Radio & Equipment Sales — your trusted source for ham radio accessories and vintage gear!"

Key Information and Specifications

Purpose: RF noise bridge / tuning aid for adjusting antenna tuners ("transmatches") without transmitting a signal on the air. It helps achieve a precise 50-ohm match quickly and safely.
How It Works: Generates distinctive modulated pulses (not just noise). Connect it between your transceiver and the antenna tuner. Tune while listening on your receiver — adjust the tuner until the pulses null out, indicating a good match. No need for on-air testing or complex calculations.
Features: Simple module board design. Easy to build and use. No "R-X" controls or calibration required. Compact and effective alternative to more expensive commercial noise bridges (e.g., MFJ-style units). Operates with standard ham setups.
