Westinghouse 12 to 108 pF 1500 Volt Single Section Air Variable Capacitor

Write a Review
MPN:
100 MMFD
Condition:
Used
Shipping:
$16.00 (Fixed Shipping Cost)

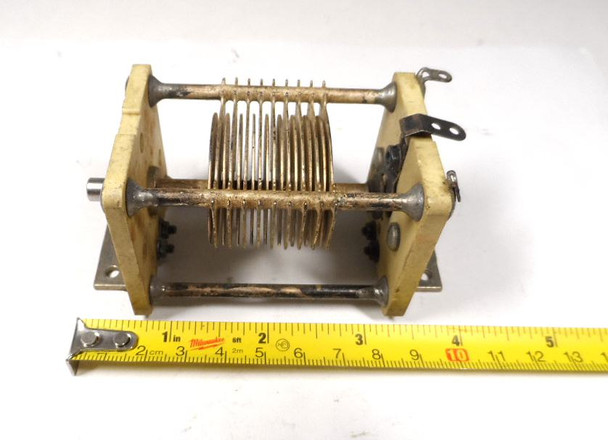

  • Vintage Westinghouse 962 single-section air variable capacitor, 12–108 pF, approximately 1500 V peak rating. Compact USA-made multi-plate design with ~1/32-inch plate spacing and 1/4-inch shaft. Measures about 4 × 2 × 2 inches. Marked with Westinghouse W logo and 100 MMFD. Ideal for amateur radio receivers, restoration projects, or RF tuning applications needing a reliable low-loss component.
  • Vintage Westinghouse 962 single-section air variable capacitor, 12–108 pF, approximately 1500 V peak rating. Compact USA-made multi-plate design with ~1/32-inch plate spacing and 1/4-inch shaft. Measures about 4 × 2 × 2 inches. Marked with Westinghouse W logo and 100 MMFD. Ideal for amateur radio receivers, restoration projects, or RF tuning applications needing a reliable low-loss component.
  • Vintage Westinghouse 962 single-section air variable capacitor, 12–108 pF, approximately 1500 V peak rating. Compact USA-made multi-plate design with ~1/32-inch plate spacing and 1/4-inch shaft. Measures about 4 × 2 × 2 inches. Marked with Westinghouse W logo and 100 MMFD. Ideal for amateur radio receivers, restoration projects, or RF tuning applications needing a reliable low-loss component.
  • Vintage Westinghouse 962 single-section air variable capacitor, 12–108 pF, approximately 1500 V peak rating. Compact USA-made multi-plate design with ~1/32-inch plate spacing and 1/4-inch shaft. Measures about 4 × 2 × 2 inches. Marked with Westinghouse W logo and 100 MMFD. Ideal for amateur radio receivers, restoration projects, or RF tuning applications needing a reliable low-loss component.
$24.99
Frequently bought together:

Description

Westinghouse 12 to 108 pF 1500 Volt Single Section Air Variable Capacitor

  This is a very high quality air variable capacitor with silver plated plates and ceramic end plates.

 Specifications:
  • Brand: Westinghouse (W logo in circle; also marked 100 MMFD)
  • Model: 100 MMFD
  • Sections: 1 (single-section)
  • Capacitance: 12 pF minimum to 108 pF maximum (marked 100 MMFD nominal)
  • Plate spacing: Approximately 1/32 in (0.031 in)
  • Estimated voltage rating: ~1500 V peak (standard ARRL Handbook guideline for ~0.030–0.032 in air-gap spacing; practical RF rating for receiving/low-power use)
  • Shaft: 1/4 in diameter
  • Dimensions (approx.): Length 4 in, Width 2 in, Height 2 in
  • Construction: Compact multi-plate air-dielectric design with ceramic or insulating end supports. Typical of mid-century receiving or general-purpose tuning capacitors carrying the Westinghouse mark.
