PAR Electronics SM-50, 6m Stressed Moxon Portable Beam Antenna Like New in Box

Write a Review
Condition:
Used
Shipping:
$25.00 (Fixed Shipping Cost)
  • PAR Electronics Moxon SM-50 6 Meter Stressed Moxon antenna. Compact directional beam with 5.8 dBi gain, excellent F/B ratio. Lightweight, portable for roving and fixed use. Great condition.
  • PAR Electronics Moxon SM-50 6 Meter Stressed Moxon antenna. Compact directional beam with 5.8 dBi gain, excellent F/B ratio. Lightweight, portable for roving and fixed use. Great condition.
$74.99
Frequently bought together:

Description

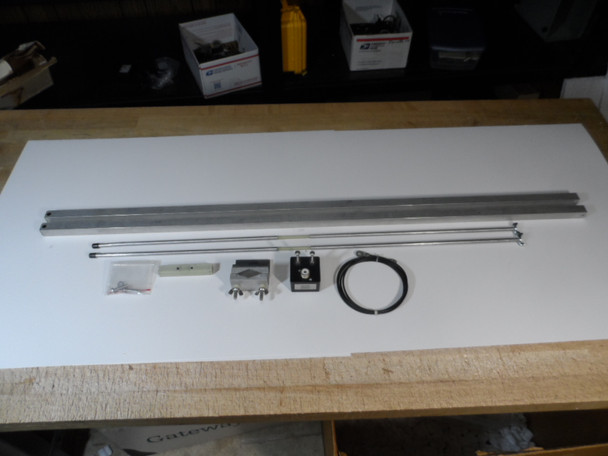

PAR Electronics SM-50, 6m Stressed Moxon Portable Beam Antenna Like New in Box

 This Antenna looks like new and has never been left outside.

 The Assembly Manual is included.

This compact directional antenna offers ~5.8 dBi gain and strong 17 dB front-to-back ratio in a small ~84" x 31" footprint—about half the size of a traditional 2-element Yagi. Ideal for 6 meter SSB/CW DX, roving, portable operations, Field Day, or home station use.Lightweight (3 lbs), quick assembly, handles 1kW, and includes mast bracket. Highly rated for performance and ease of use. Perfect addition for any 6m enthusiast or Nationwide Radio operator looking for an efficient, space-saving beam.

You can see the antenna and read the manual at the link below:

The Moxon SM-50 (also called PAR Electronics SM-50 Stressed Moxon) is a compact 6-meter (50 MHz) directional antenna designed for horizontal polarization. It is a 2-element Moxon beam (a folded Yagi variant) known for its small footprint, lightweight construction, and strong performance. PAR Electronics engineered it with a "stressed" design using aluminum, fiberglass, and Flex Weave wire, allowing quick assembly/disassembly (under a minute) without tools after initial setup.


Key Specifications
  • Gain: ~5.8 dBi
  • Front-to-Back Ratio: ~17 dB
  • Impedance: 50 ohms (direct feed, SO-239)
  • VSWR Bandwidth: ~1.4 MHz (between 1.5:1 points)
  • Power Handling: 1,000 watts
  • Size: Rectangular ~84" x 31"
  • Weight: ~3 lbs
  • Mast: Bracket included for ¾" to 1½" masts
  • Materials: 6061-T6 aluminum, fiberglass, stainless hardware
Advantages: Roughly half the size of a traditional 2-element Yagi with comparable gain but better F/B ratio. Excellent for portable/roving, mountain topping, Field Day, stealth installations, or fixed use. Highly rated on eHam (average 5.0/5 from dozens of reviews) for ease of use, performance, and durability.
