Heathkit SB-630 Station Console in Collector Quality Condition Working

Write a Review
MPN:
SB-630
Condition:
Used
Shipping:
$30.00 (Fixed Shipping Cost)

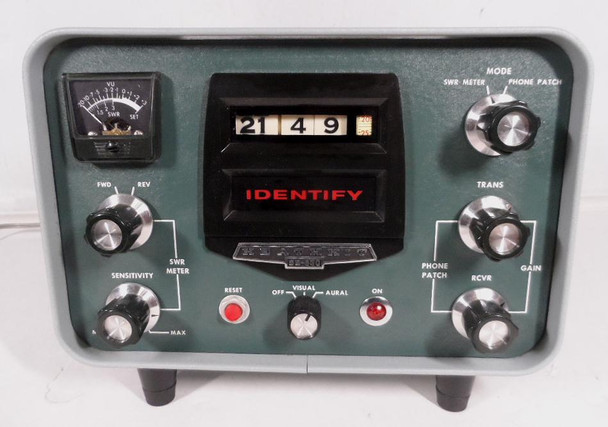

  • Vintage Heathkit SB-630 Station Console in collector-quality cosmetic condition, fully working. Includes clock, 10-min timer, SWR meter, and phone patch. Perfect SB-series match after long storage. Classic ham radio accessory. Nationwide shipping available.
  • Vintage Heathkit SB-630 Station Console in collector-quality cosmetic condition, fully working. Includes clock, 10-min timer, SWR meter, and phone patch. Perfect SB-series match after long storage. Classic ham radio accessory. Nationwide shipping available.
  • Vintage Heathkit SB-630 Station Console in collector-quality cosmetic condition, fully working. Includes clock, 10-min timer, SWR meter, and phone patch. Perfect SB-series match after long storage. Classic ham radio accessory. Nationwide shipping available.
  • Vintage Heathkit SB-630 Station Console in collector-quality cosmetic condition, fully working. Includes clock, 10-min timer, SWR meter, and phone patch. Perfect SB-series match after long storage. Classic ham radio accessory. Nationwide shipping available.
  • Vintage Heathkit SB-630 Station Console in collector-quality cosmetic condition, fully working. Includes clock, 10-min timer, SWR meter, and phone patch. Perfect SB-series match after long storage. Classic ham radio accessory. Nationwide shipping available.
  • Vintage Heathkit SB-630 Station Console in collector-quality cosmetic condition, fully working. Includes clock, 10-min timer, SWR meter, and phone patch. Perfect SB-series match after long storage. Classic ham radio accessory. Nationwide shipping available.
  • Vintage Heathkit SB-630 Station Console in collector-quality cosmetic condition, fully working. Includes clock, 10-min timer, SWR meter, and phone patch. Perfect SB-series match after long storage. Classic ham radio accessory. Nationwide shipping available.
$124.99
Frequently bought together:

Description

Heathkit SB-630 Station Console in Collector Quality Condition Working

 I powered up this Station Console and it is working great. The clock runs smooth and quiet and the SWR meter reads accurate. I did not check the phone patch or other functions. It came with the SB-301 / SB-401 station I have listed.

 This beautiful Console was purchased about 30 years ago .and was part of a large collection that was displayed in a clean dry environment and not used for all this time.

As with most vintage gear, it may be improved with an alignment  and it would be prudent to replace the electrolytic capacitors Before they fail, but it appears to be working as it should.

I am selling it as is, as described.

  I have been packing and shipping heavy vintage gear for over 30 years and this item with be packed better than any paid packing service.

 I will include a nice copy of the manual.


The Heathkit SB-630 is a classic 1967–1974 amateur radio station console that combines multiple useful functions into one matching SB-series cabinet. It was designed as a companion to the SB-301/SB-401 and other Heathkit gear. It includes: a 24-hour digital clock (Numechron-style drum), a 10-minute ID timer, an SWR/Power meter (bridge), and a hybrid phone patch.


Key Features & Specifications
  • Clock: 24-hour digital drum display, manual set.
  • Timer: 10-minute resettable timer with audible/visual alert (often used for ID reminders).
  • SWR/Power Meter: Directional coupler bridge; measures SWR and relative forward/reflected power (no external calibration needed for basic use).
  • Phone Patch: Hybrid transformer type for telephone line connection; includes audio level controls, VU meter monitoring, and VOX or manual switching capability.
  • Power: 117 VAC (some models have dual primary for 234V).
  • Size & Weight: Approximately 10" W x 6.75" H x 11" D; compact desktop unit.
  • Rear Connections: Antenna coax in/out for SWR bridge, phone line jacks, audio in/out for patch, 117V switched AC outlets.
